Timing chain, turbo, VANOS, cooling & ignition system repair for all BMW engines. Diagnostic-first approach — we find the root cause before turning a single bolt.
Every engine repair begins with a full diagnostic — because the symptom is never the whole story.
Complete timing chain kit — chain, guides, tensioner, VANOS gears. Critical for N20, N47, and N55 engines where chain stretch leads to catastrophic valve contact. We use timing correlation analysis to catch stretch before it snaps.
DTCs: P0016, P0008, P0017
Engines: N20, N47, N55, N46, M54
From RM 3,000
Wastegate repair, turbo seal replacement, full turbo rebuild or replacement. Charge pipe and intercooler inspection included. We verify repair with live boost data against target — must match within 10% across all RPM ranges.
DTCs: P0299, P0234, P0243
Engines: N54 (twin), N55, N20, B58, N47
From RM 1,500
Solenoid replacement, hub/gear repair, and timing adjustment. We test VANOS response with cam timing analysis across idle, part-load, and full-load conditions — comparing against engine-specific target tables.
DTCs: P0010–P0015, P0011, P0014
Engines: All BMW VANOS engines from M50 onwards
From RM 500

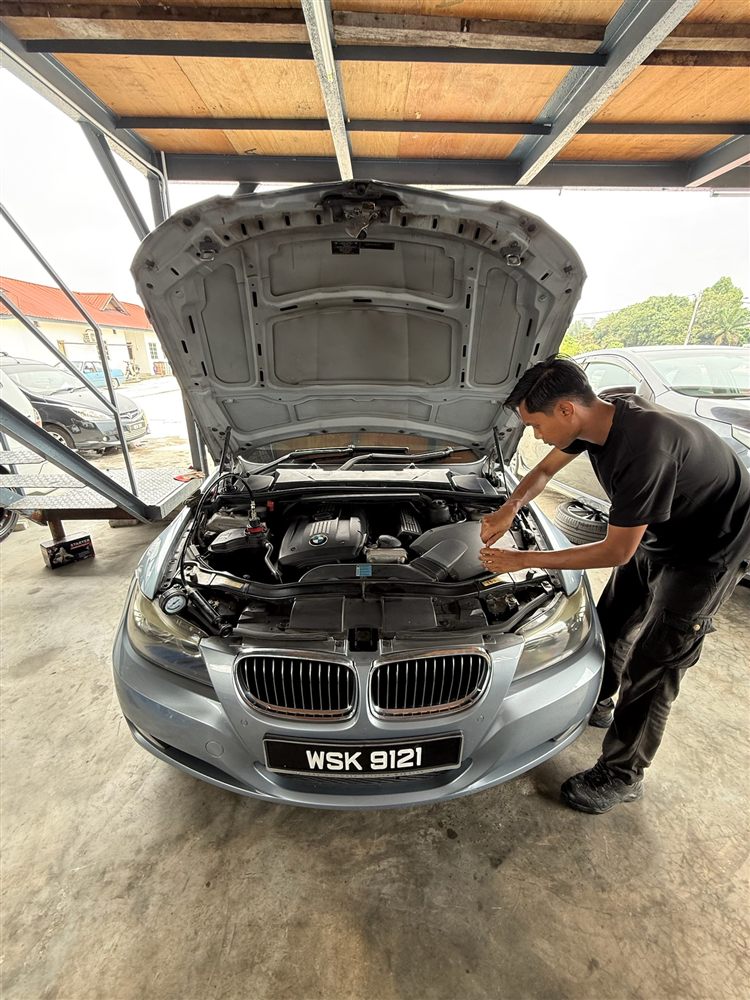

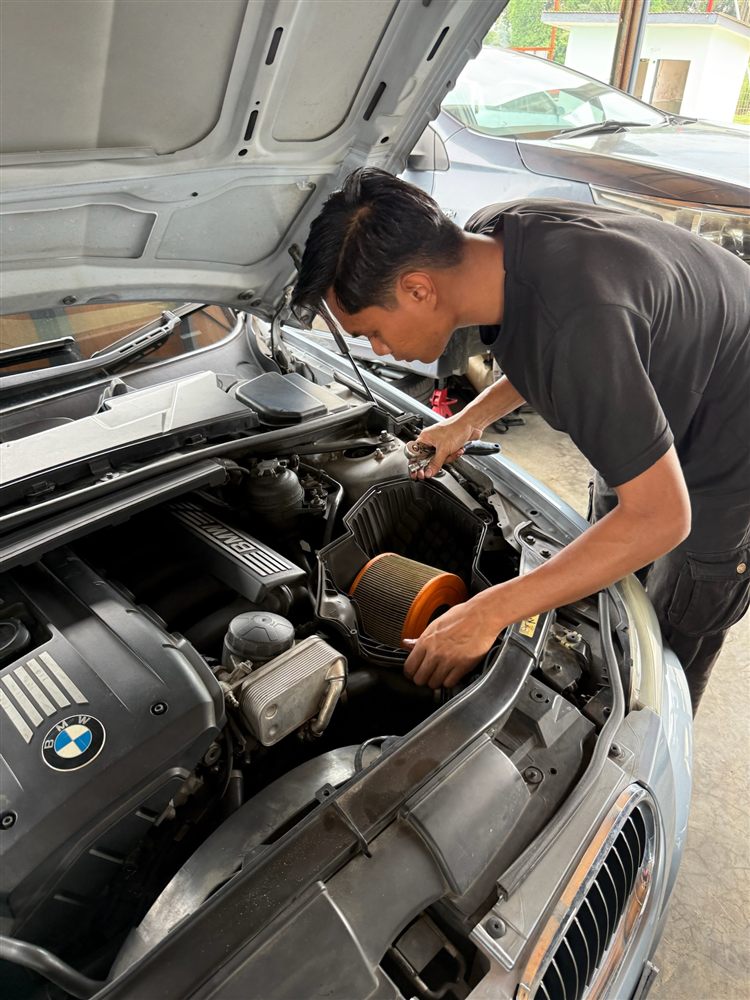

Electric water pump, thermostat, expansion tank, radiator, hoses. In Malaysian heat, BMW cooling components fail 40–60% sooner than European lifespan. We replace preventively to avoid catastrophic overheating.
Rules checked: COOL_R1 (ECT warning), COOL_R2 (critical), COOL_R4 (warmup rate)
From RM 800
Coil packs, spark plugs, and ignition module diagnosis. We pinpoint failing coils using per-cylinder misfire counter analysis (COMB_R4 rule) — no unnecessary part replacement.
DTCs: P0300–P0306, P0351–P0356
From RM 200
High-pressure fuel pump (HPFP), injectors, fuel pressure regulator, and fuel rail. We test using live fuel pressure data and injector balance analysis. HPFP is a known issue on N54 and early N55 engines.
Rules checked: FUEL_R1/R2 (pressure), FUEL_R4 (injector balance)
From RM 500
Diagnostic-first, data-verified engine repair. Every job carried out in-house by our engine specialist team.
Deep knowledge of every BMW engine variant found on Malaysian roads.
| Engine | Found In | Known Issues | Our Speciality |
|---|---|---|---|
| N20 (4-cyl turbo) | F30 328i, F10 528i, F25 X3 | Timing chain, oil consumption, turbo oil leak | Timing chain kit, oil separator, turbo reseal |
| N52 (6-cyl NA) | E90 325i/330i, E60 530i, E70 X5 | VANOS, valve cover gasket, electric water pump, DISA valve | VANOS overhaul, cooling system refresh |
| N54 (6-cyl twin turbo) | E90 335i, E60 535i | Wastegate rattle, HPFP, oil leaks, charge pipe | Wastegate fix, HPFP replacement, oil leak repair |
| N55 (6-cyl single turbo) | F30 335i, F10 535i, F15 X5 | Charge pipe, VANOS, valve cover, oil filter housing | Charge pipe upgrade, VANOS repair, leak repair |
| B58 (6-cyl turbo) | G20 340i, G30 540i, G01 X3 M40i | Charge pipe, coolant loss, timing chain (rare) | Cooling system service, charge pipe fix |
| M54 (6-cyl NA) | E46 330i, E39 530i, E53 X5 | DISA valve, CCV, cooling system, VANOS | DISA repair, CCV replacement, cooling refresh |
| N47 (4-cyl diesel) | E90 320d, F30 320d | Rear timing chain (catastrophic), injectors, DPF | Timing chain (engine-out), injector coding |
We never start turning bolts without data. Every engine repair begins with a full diagnostic using our 7-system analyser.
DME current and stored codes, freeze frame data — complete module analysis.
Fuel trims (STFT ±8%, LTFT ±10%), misfire counters (must be 0), O2 sensor switching (variance >0.3V), timing advance, MAF reading vs expected.
34 correlations across fuel, air, combustion, thermal, emissions, and powertrain — catching issues individual parameter checks miss.
Monitor parameters under real driving: load, acceleration, steady cruise, and hill climb.
Written report identifying the actual cause, not just the symptom the DTC points to. Transparent itemised quote.
Post-repair scan and road test to confirm all parameters within spec before handover.
Average ambient 32°C vs 15°C in Germany. Every cooling component works harder, every rubber seal degrades faster. AC runs year-round, adding 3–5 kW constant parasitic load.
Higher temperatures break down oil faster. BMW's CBS allows 15,000–25,000 km intervals — in Malaysia, we recommend 8,000–10,000 km maximum.
Intake boots, vacuum lines, coolant hoses, valve cover gaskets — all last 40–60% of European rated lifespan. We check and replace preventively.
KL, Shah Alam, and Klang commutes keep engines at peak thermal stress for extended periods. Stop-start driving is the hardest operating condition for any engine.
Check engine light, rough idle, loss of power, overheating — we diagnose the root cause using real data. Klang Valley's diagnostic-first BMW engine specialist.
Based in Klang — we serve BMW owners across the entire Klang Valley.
